LSW-15-100-5-W-24V

Item No.: LSW-15-100-5-W-24V

Direct Illumination

LSW SERIES - High intensity, concentrated ring illumination

LED arrays are arranged densely for the light arrays to be concentrated to a spot for extreme bright light.

By using a flexible PCB Board, the product quality and efficiency improves. Flexible boards are able to achieve optimized angle with variation of outer and inner diameter to target a work piece.

Optional diffuser can be added to this LSW light for more even light distribution.

Applications: substrate inspection, label inspection, flat surface, fiducially recognition

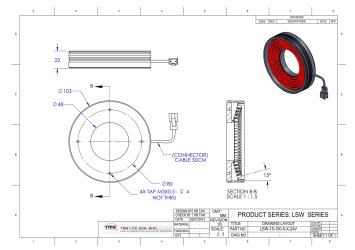

Full technical specifications: Click here to download

579,00
(Price excluding VAT)
Features
Type of illumination:
Direct
Shape:
Ring
Angle:
15
Colour:
White
Voltage Input:
24V
Size:
100
Brand:
TMS Lite
Series:
LSW

Specification

- Colour White

- Size 100mm

- Angle 15°

- Continuous and Strobe Applications

- Lighting Cable 500mm

Technical Information

24V DC Input Power

Voltage/Watt                Current

24V / 13.68 W (White) 570 mA
