BHS4-00-120-X-IR850-24V

Item No.: 167.0309

Backlight Illumination

BHS SERIES - Backlight illumination

BHS series LEDs are arranged in a dense array and shine into a diffuser.

The uniform light emitted provides area illumination creating a silhouette that highlights a work piece's shape and outline.

Applications: lead frame inspection, shape recognition, size measurement

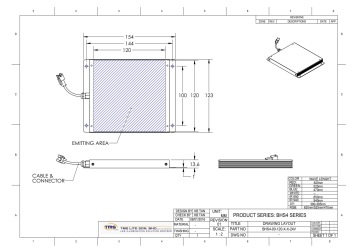

Full technical specifications: Click here to download

569,00
(Price excluding VAT)
Features
Type of illumination:
Backlight
Shape:
Square
Angle:
0
Colour:
IR850
Voltage Input:
24V
Size:
120x120
Brand:
TMS Lite
Series:
BHS

Specification

- Colour IR850

- Size 120mm

- Angle 0°

- Continuous and Strobe Applications

- Lighting Cable 500mm

Technical information

24V DC Input Power

Voltage/Watt                  Current

24V / 9.216 W (IR850) - 384mA

LED 850 nm
