NXT rio GS23050C-HQ Rev.1.2

Item No.: 084.0066

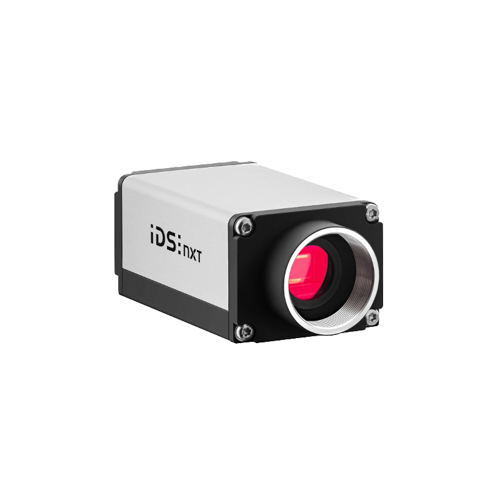

NXT rio GS23050C-HQ Rev.1.2, AI Machine Vision Camera

NXT rio GS23050C-HQ Rev.1.2 is a compact industrial AI camera with an embedded vision platform. It can run neural networks really fast, in just a few milliseconds, thanks to its special AI core called the "Deep Ocean Core".

With features like C-Mount, a serial RS232 interface, and a Gigabit Ethernet network connection with an RJ45 connector for communication via REST web service and OPC UA, the NXT rio GS23050C-HQ Rev.1.2 is perfect for industrial use.

The NXT rio Rev.1.2 GS23050C-HQ uses Sony's Pregius series sensor, the IMX264, which captures clear images with minimal noise at a resolution of 2448 x 2048 pixels, meeting high standards for image quality effortlessly.

SKU: 1009147

Technical specifications: Click here to download

€1.611,00
(Price excluding VAT)
Features
Colour/Mono:
Colour
Sensor Type:
SONY IMX264
Camera Type:
AI Camera
Resolution:
2448x2048
Megapixel:
5 MP
Framerate:
14 FPS
Interfaces:
GigE
IP:
IP30
Housing:
Yes
Brand:
IDS Imaging

Technical information:

- Sensor: CMOS Color, Sony

- Sensor shutter: Global

- Sensor size: 2/3"

- Pixel size: 3.45 µm

- Resolution: 2448x2048

- Lens: C-Mount

- FPS: 14

- Power: 5.6W - 9.8W

- I/O connector: 12-pin M12 connector (Attend 216A-12MSR)

- Interface connector: GigE RJ45, screwable

- IP: 30

- Operation temperature: 0 tot 55 °C

- Dimensions: 34.0 mm x 44.0 mm x 73.0 mm

- CE, FCC, UKCA, KC, UL listed, RCM and RoHS compliant
