UI-5240CP-NIR-GL Rev.2.2

Item No.: 084.1057

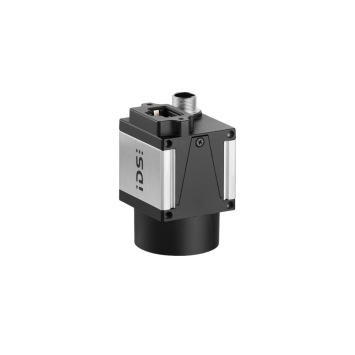

IDS UI-5240CP-NIR-GL Rev.2.2, GigE Machine Vision NIR camera

Discover the IDS UI-5240CP-NIR-GL GigE industrial camera, designed to deliver superior image quality even in low-light conditions or at high speeds. This advanced machine vision NIR camera features  e2v  EV76C661ABT Rolling shutter CMOS sensor, known for its excellent image quality, sensitivity, and wide dynamic range. This makes the IDS UI-5240CP-NIR-GL an ideal choice for cost-effective yet demanding applications, such as surface inspections and detailed image analysis.

With a compact and durable design measuring only 29x29x29 millimeters, this industrial camera fully complies with the Vision standard. Its versatile GigE interface and robust build make it the perfect fit for a wide range of industrial and logistics applications where reliability and precision are paramount.

The IDS UI-5240CP-NIR-GL is supported by IDS Vision firmware version 4.96.1 and higher.

SKU: AB12393

Technical Specifications: Click here to download



€686,00
(Price excluding VAT)
Features
Colour/Mono:
NIR
Sensor Type:
e2v EV76C661
Resolution:
1280x1024
Camera Type:
Matrix camera
Megapixel:
1.3 MP
Framerate:
59 FPS
Interfaces:
GigE
Housing:
Yes
Brand:
IDS Imaging

Technical information:

- Sensor: CMOS, NIR, e2v

- Sensor shutter: Rolling shutter

- Sensor size: 1/1.8"

- Pixel size: 5.3 µm

- Resolution: 1280x1024

- Lens: C-Mount

- FPS: 59

- Power: 1.8 W - 2.4 W

- I/O connector: 8-pin Hirose connector

- Interface connector: GigE RJ45, screwable

- IP: IP30

- Operation temperature: 0 °C - 55 °C

- Dimensions: 29 mm (W) x 29 mm (H) x 29mm (D)

- CE, FCC, KC and RoHS compliant
