IDS U3-3130CP-C-HQ Rev.2.2

Item No.: 084.0004

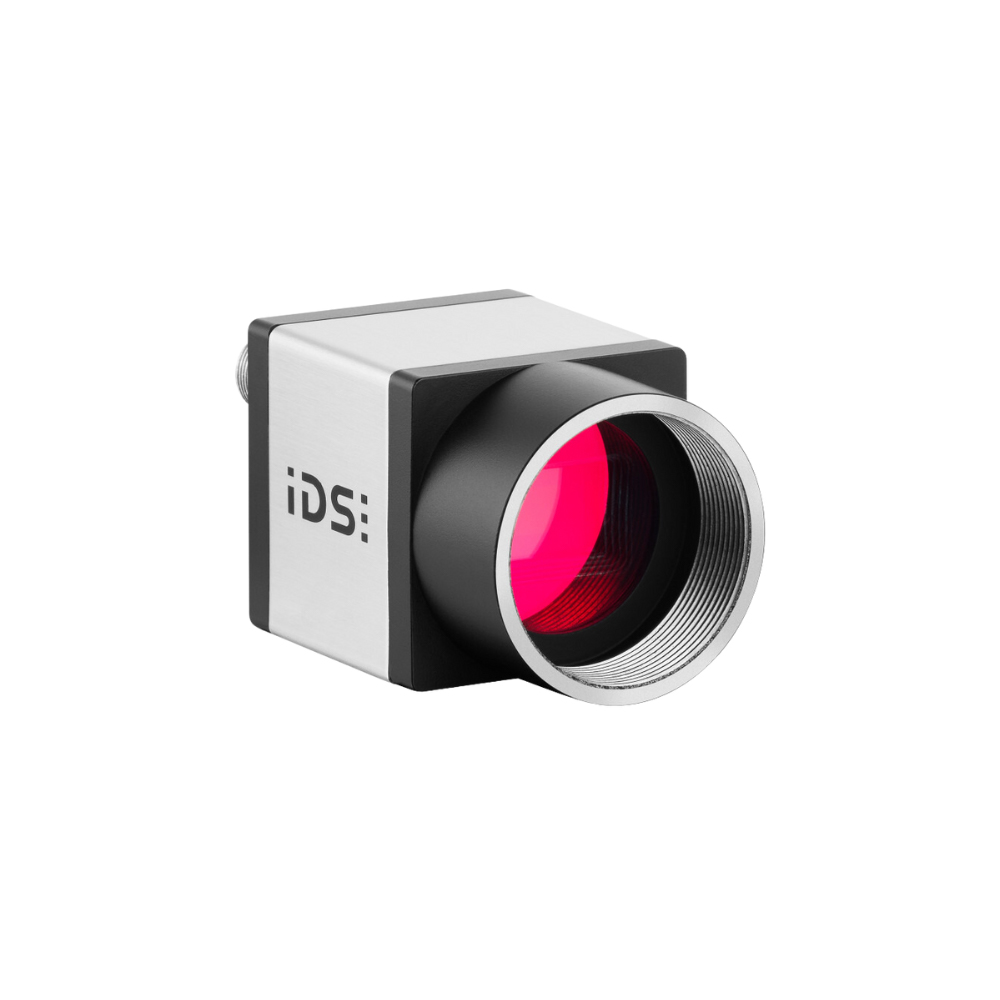

IDS U3-3130CP-C-HQ Rev.2.2, USB 3 Machine Vision Colour Camera

The IDS U3-3130CP-C-HQ USB3 machine vision colour camera with 1/3.6" global shutter CMOS sensor PYTHON 500 from onsemi is made for high speeds. Thanks to the sensor's unique AOI function (horizontal and vertical readout), the industrial camera achieves extremely high frame rates.

This makes the 0.48 MPix uEye+ CP camera (800 x 600 pixels, up to 396 fps) particularly suitable for classic machine vision applications, for slow motion or high-speed tracking applications.

SKU: 100846

Technical specifications: Click here to download

590,00
(Price excluding VAT)
Features
Colour/Mono:
Colour
Sensor Type:
Onsemi NOIP1SE0500A
Camera Type:
Matrix Camera
Resolution:
800x600
Megapixel:
0.48 MP
Framerate:
396 FPS
Interfaces:
USB
IP:
IP30
Housing:
Yes
Brand:
IDS Imaging

Technical information:

- Sensor: CMOS, Color, Onsemi

- Sensor shutter: Global

- Sensor size: 1/3.6"

- Pixel size: 4,8 µm

- Resolution: 800x600

- Lens: C-Mount

- FPS: 396

- Power: 1.7W - 3.9W

- I/O connector: 8-pin Hirose

- Interface connector: USB 3.0 micro-B

- IP: IP30

- Operation temperature: 0 tot 55 °C

- Dimensions: 29 mm (W) x 29 mm (H) x 29mm (D)

- CE, FCC, KC and RoHS compliant
